5MPVENTEK 5MP 18× Hybrid Illumination PTZ Camera
PTZ IP cameraPTZ-850-HYB120-18X

5MP 18× Hybrid Illumination PTZ Camera

Long-range 5MP PTZ camera with 18× optical zoom, 120m infrared, 60m warm light and intelligent 3D human tracking.

Download specification
5MPResolution
5.35-96.3mmZoom lens
120mIR range
60mWarm light
Product views

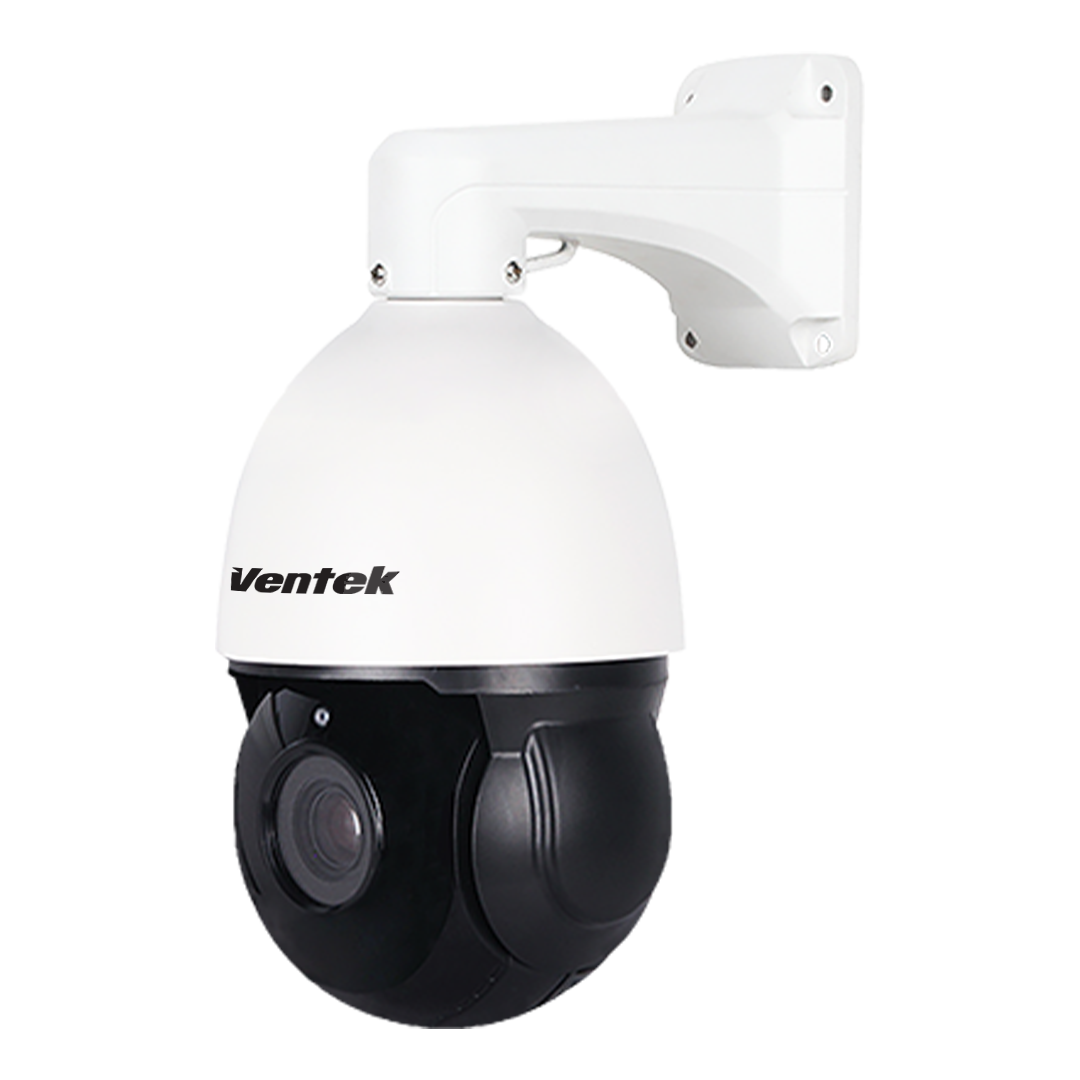

VENTEK PTZ-850-HYB120-18X product view 1

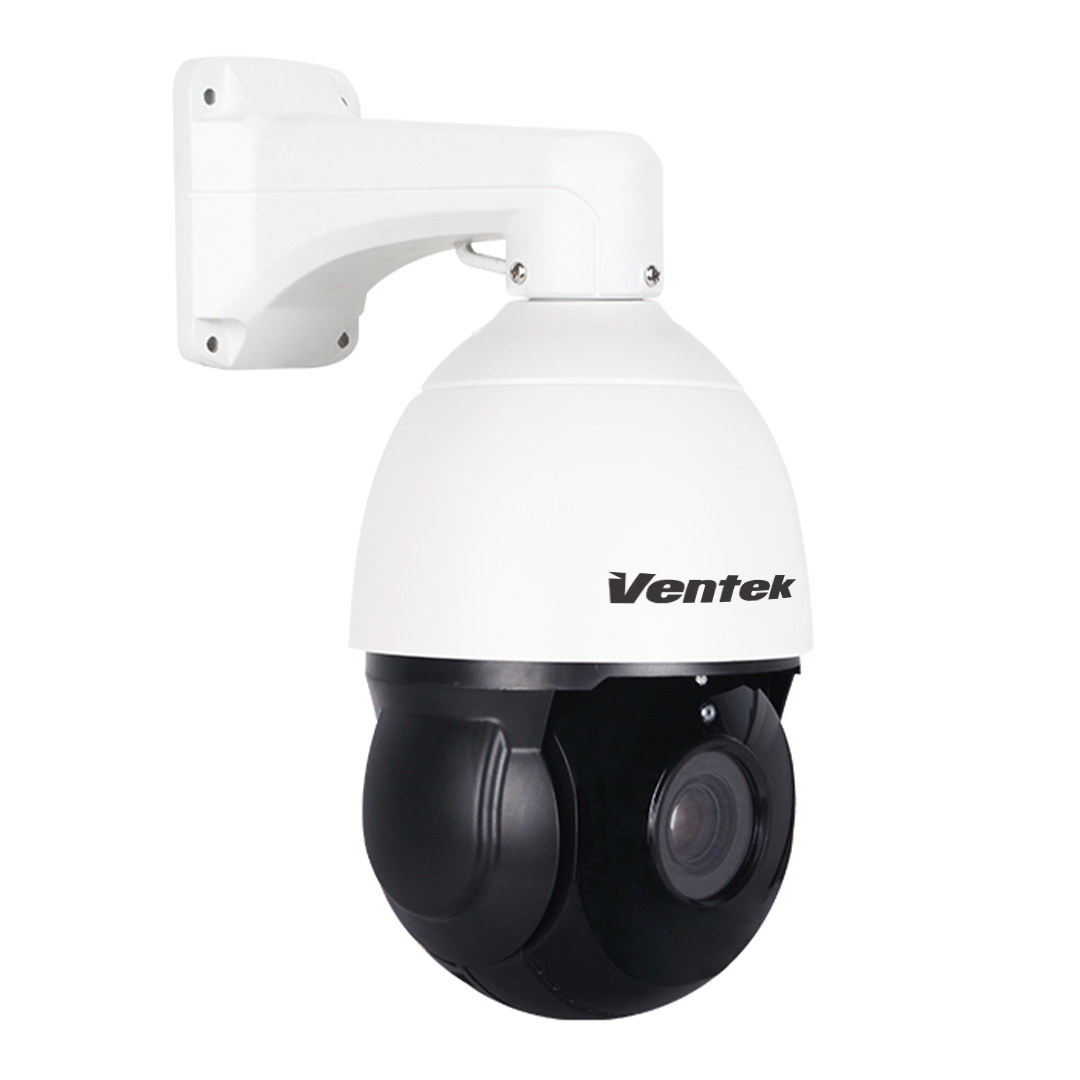

VENTEK PTZ-850-HYB120-18X product view 2

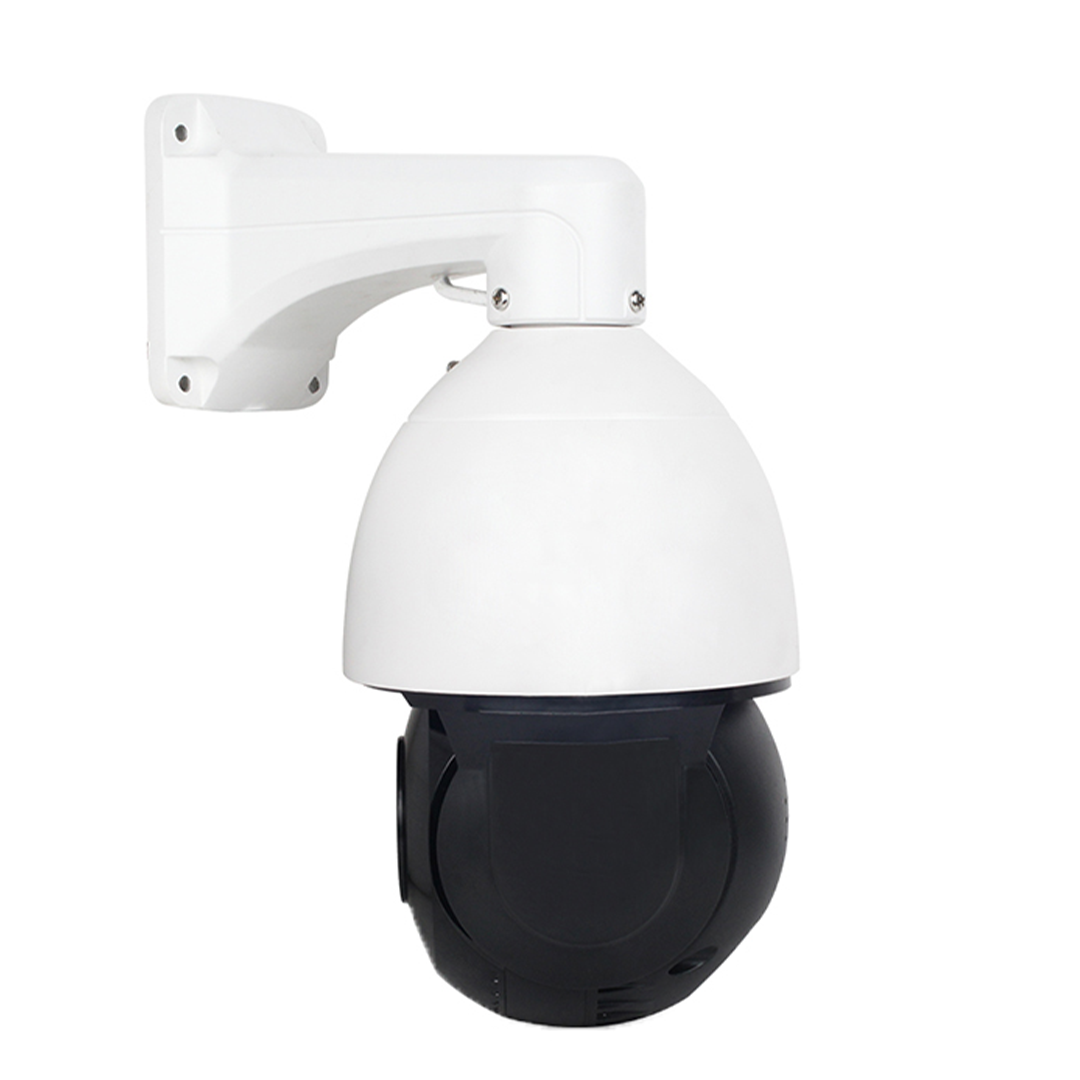

VENTEK PTZ-850-HYB120-18X product view 3
VENTEK PTZ-850-HYB120-18X product view 4
Core capability

Built into the camera.

  • H.265+
  • 18× optical zoom
  • 120m IR
  • 60m warm light
  • 3D human tracking
  • Built-in mic + speaker
  • SD card support
  • ONVIF Profile S/T
  • IP66
Technical overview

Key specifications.

Sensor
1/2.8" progressive scan CMOS
Maximum stream
2592 × 1944 at 20fps
Lens
5.35-96.3mm F1.8-F3.9, 18× optical zoom
PTZ movement
360° pan at 80°/s; 93° tilt at 40°/s
Tracking
3D human tracking from 5-50m
Illumination
120m infrared; 60m warm light
Presets and tours
220 presets; 8 guard tours
Weatherproofing
IP66 with 6000V transient protection
Dimensions
173 × 173 × 320mm
Power
12V DC; PoE optional

For complete technical information, supported functions and conditions, download the current specification sheet.
